Full-Motion Wall Mount for 13" – 39" flat-panel TVs — extends 15" / 39.37 cm
MF215
This product has been discontinued.
- Fits TVs 13" - 39"
- Swivel 15° / -15°
- Extension 15.36"
-
Safety Tested and UL Certified
Safety tested and UL Certified
MF215 is rated
out of
5 by
15.
Will this work with my TV?
Enter the model number of your TV to find out.
Here are a few products that are compatible with your TV!
Videos to Get You Started
SANUS MF215 Features Video
SANUS MF215 Installation Video
What is Full-Motion?

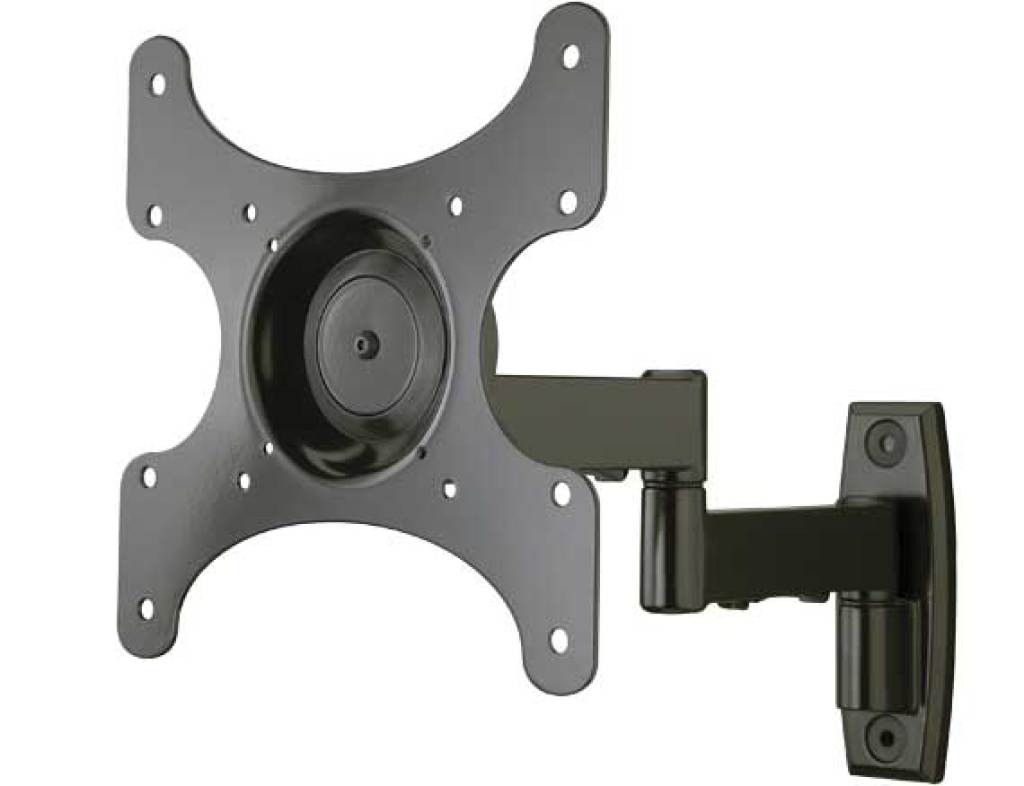

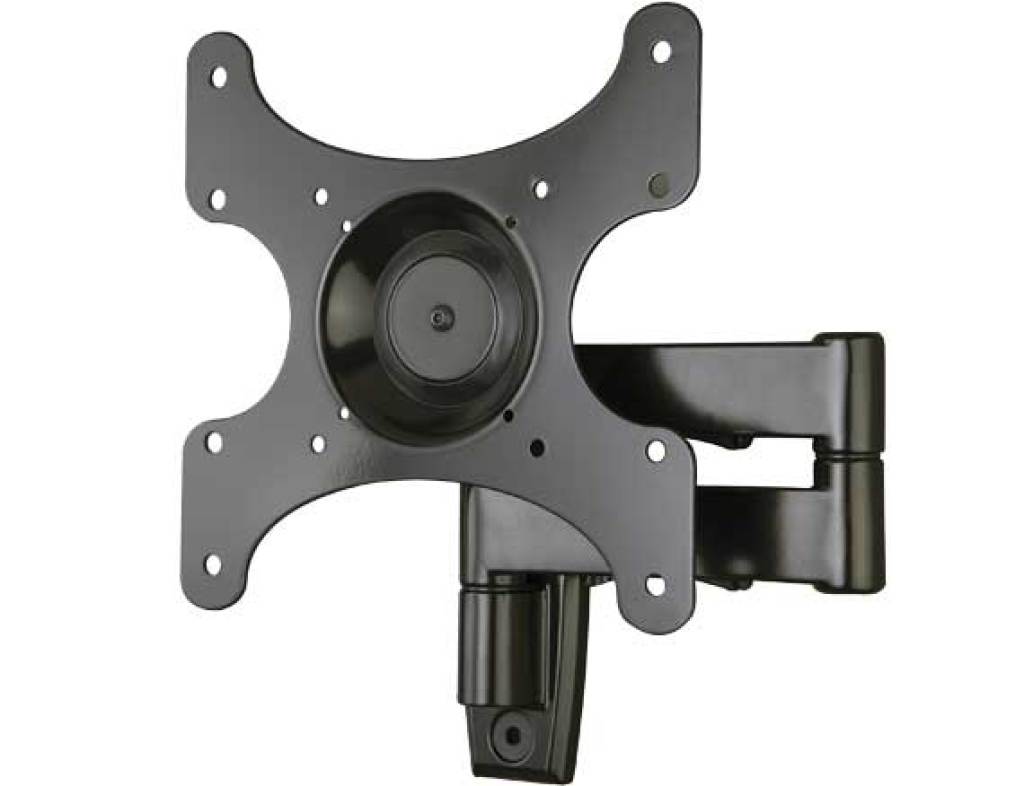

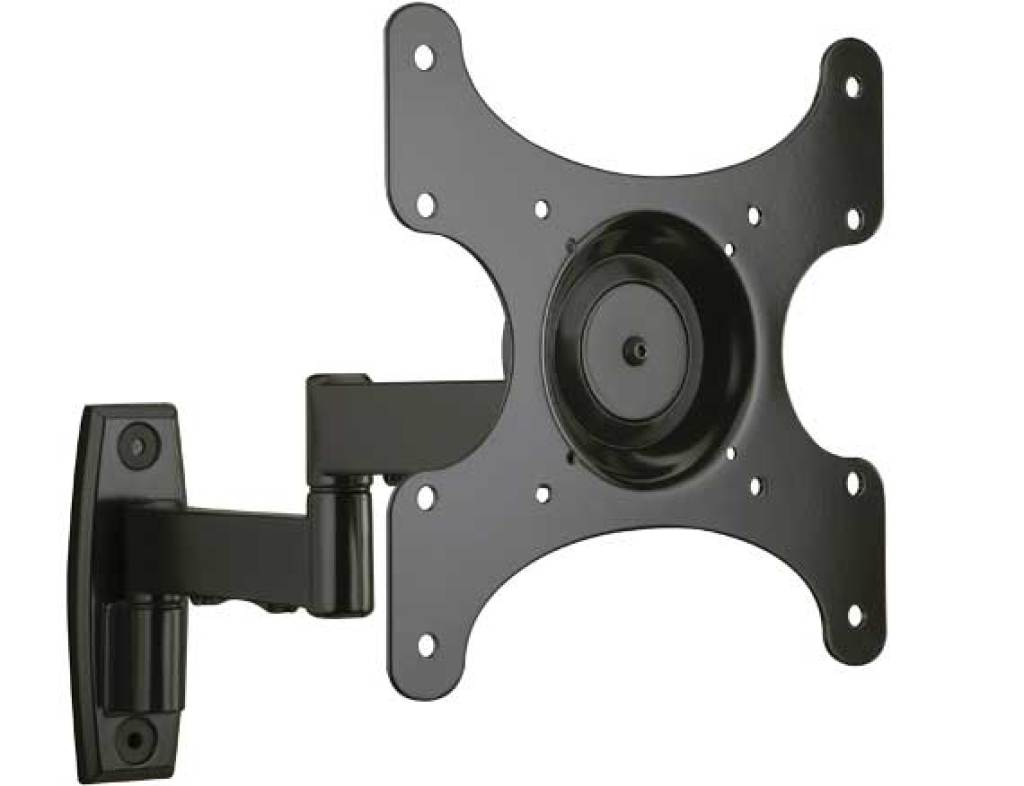

Full-Motion Wall Mount for 13" – 39" flat-panel TVs — extends 15" / 39.37 cm
The SANUS MF215 is a full-motion wall mount for 13" – 39" flat-panel TVs up to 60 lbs / 27.27 kg. Virtual Axis 3D™ allows 360° of effortless, fluid movement with the push of a finger, making it easy to reduce glare and find the perfect TV angle at any height. Full motion allows maximum flexibility — tilt, swivel, pan and extend your TV up to 15" / 39.37 cm from the wall in every direction for easy viewing from any seat in a room. In-arm cable channel conceals and routes cables for a clean appearance. Keyholes on faceplate slide onto TV and into place for effortless alignment and easy installation. VESA-compatible faceplate fits 75 x 75, 100 x 100, 200 x 100 and 200 x 200 hole patterns.Product Features
Tools You Will Need For Installation
-
7/32" Drill Bit
-
3/8" Masonry Bit (Concrete Installations)
-
1/2" Socket Wrench
-
Awl
-
Electric Drill
-
Hammer
-
Level
-
Pencil
-
Phillips Head Screwdriver
-
Stud Finder
-
Tape Measure
The Details
| Product Brand: | SANUS |
|---|---|
| Model Code: | MF215 |
| UPC Code: | 793795362162 - Black - Discontinued |
| Product Width: | 11.12" / 28.24cm |
| Product Height: | 11.82" / 30.02cm |
| Product Depth: | 3.18" - 15.36" / 8.08cm - 39.01cm |
| Package Width: | 11.75" / 29.85cm |
| Package Height: | 4.25" / 10.80cm |
| Package Depth: | 13.00" / 33.02cm |
| Package Weight: | 6.00lbs / 2.72kg |
| TV Size Range: | 13" - 39" / 33.02cm - 99.06cm |
|---|---|
| Maximum TV Weight: | 60lbs / 27.22kg |
| Supported VESA Patterns |
|
| Pan: | 90° / -90° |
| Tilt: | 15° / -15° |
| Roll: | 180° / -180° |
| Swivel: | 15° / -15° |
Recommended Products for You
Rated 5 out of
5
by
metallison from
Excellent product and customer service!
The product itself does everything I needed it to do. I hung the TV easily outside on my patio and it swivels just like I wanted. The best part was while moving the TV due to a hurricane, I accidentally lost one of the parts to the mount. I emailed customer service to ask how I could order a replacement part. Not only were they very helpful and kind, but they sent me the part for free. It was very nice to see a company with such great customer service. No questions asked, they just sent me the replacement part, and asked how my day was going. Great company!
Date published: 2016-12-12
Rated 5 out of
5
by
TampaBruce from
Best Packaging and Labeling of any product ever
I am in my 60's. I am very handy around the house, AND, I do read instructions. I felt I had to compliment SANUS on the parts packaging and labeling. My MF215 TV Wall Mount is by far, the best organized and labeled packaging of parts of any device I have constructed / put together. My proverbial hat is off to whoever came up with the concept. Organizing the individual pieces and printing the category on the sections of the bag is brilliant. And having multiple installation options (depth of hole and need of spacer) makes the installation potentially more complex, but you accompanied the solution for that issue as well.
I worked for over 38 years for a Fortune 10 company in the US, and I wish we had come up with as good a design for our customers. I hope many companies examine your process for "best practices" and implement as much as makes sense for them. All consumers lives will be better for it.
Thanks.
Tampa, Florida, US.
Date published: 2016-09-13
Rated 5 out of
5
by
Carp from
Great mount for mid-size smart TV
This mount IS compatible right out of the box with a Samsung 32" UN32F5500 model TV. Easy to install, easy to hook up to the TV back. The bracket fits the 200x200 mounting pattern perfectly.
I had read several reviews on this mount - all were overall good reviews, but quite a few were unhappy because they said the mount was not compatible with Samsung 32" TV's due to the correct M8 x 20mm bolts not being included. Other than that they were very happy with the mount once they bought the right size bolts locally.
So I took a chance because I really wanted the clean look on the wall and full motion provided by this mount. When I got the mount out of the box I looked and sure enough, none of the bolts were the correct size.
I was all ready to go to the hardware store to buy the correct bolts - BUT - for some reason I looked again and dug through all the little hardware packs and really looked. Lo and behold - the folks at Sanus must have been reading their reviews and learned a lesson. Because when I looked again I found tucked in the box a small packet marked "Additional Bracket Bolts - Use only If Needed" and sure enough, there were the 4 required M8 x 20mm bolts. Perfect.
SO, just make sure you have your torpedo level and know where your stud is in the wall, and the thing really is easy as 1, 2, 3 to mount.
Next the in-arm cable management. I'm a nut for wiring so it actually took me as long to run wires as it did to put the mount on the wall. The cable run space in the arms was tight, but I was able to route the power cable, HDMI cable, RCA video and L/R audio cables, and IR Extender cable ALL inside the cable channels. I do my own work and mods on my motorcycle including electrical, so I used some extra 1/2" black heat-resistant flex-conduit I had hanging around in the shop to bundle and cover exposed areas of the multiple cables and it came out looking really clean.
The mount does allow full 180 degree swiveling on the wall and the up/down lean angle for the TV works nicely and holds position well, so I am able to get the perfect angle to view the screen from anywhere in the room.
So bottom line, I do recommend this mount; just know where you want to put it, be sure you are centered on a stud and have your mount level when you mark the drill spots, and this thing is a very easy, basic install. Very happy with it. I would have uploaded a photo showing the mount and cable run but kept getting a "504 gateway timeout" on the upload.
Date published: 2014-01-22
Rated 4 out of
5
by
Keith from
First Wall Mount
This was my first venture into mounting a TV on a wall and I will say it was not a hard as I anticipated. I purchased my mount from Best Buy after seeing the various mounting styles. I was trying to mount the TV in the corner of a room and this bracket worked well. The installation took about 1.5 hours because I was trying to be a perfectionist and overly cautious. I am now looking to buy another mount for my master bedroom tv.
Date published: 2013-12-01
Rated 4 out of
5
by
George from
Solid performance
I bought this at Best Buy when buying the TV and have not been disappointed. Works great and is easy to adjust. The install videos on the website were a nice bonus - very helpful.
The only glitch was the included screws did not match the mounting holes on the back of my new Insignia TV set. Even calling Insignia Customer Service did not help since they told me an incorrect size. I took the TV in the car to a hardware store and tried different screw sizes (M5 - 0.8 12mm worked for me).- the extra washers were helpful in adjusting the mounting.
Date published: 2012-11-21
Rated 5 out of
5
by
Makelvie from
Good Product
Great customer service. We had a problem with the fit and sanus sent us a new part at no charge. I would certainly buy other products made from this company.
Date published: 2012-03-03
Rated 5 out of
5
by
Anonymous from
super easy to install
if you use all the recommended tools, installation is a breeze. a stud finder is necessary. it DOES work with samsung televisions without any type of adapter.
installation was a breeze. i'm not great at this type stuff, but it was not problem when following directions.
great little tv mount. easy to move and set to any position. i had no problem making it straight,even when turned or tilted.
Date published: 2011-06-06
Rated 3 out of
5
by
JJones from
"Fits Most TV's?" Yeah Right!!
It was in July of 2010 that someone reviewed this product and let Sanus know that some vital screws were missing. And I just bought this product this weekend and they still havent put the right screws in there, so I had to go buy them myself.
Then, when I am mounting the bracket to the back of the TV, I find that the bracket holes had to be ground in order to actually allow the screws to pass through.
It was easy to install after that, but for the money, NO, I would not reccomend the product.
You will end up putting more time into preparing it to work for your TV than it is worth.
The distributor obviously never gets word of these reviews, because they are still selling these mounts with the 32" Samsung, and saying they are perfect for the job.
Date published: 2011-02-21
