Full-Motion Wall Mount for 26" – 42" flat-panel TVs — extends 9.5" / 24.13 cm
MF110
This product has been discontinued.
- Para televisores 26" - 42"
- Giro 30° / -30°
- Extensión 24.38cm
MF110 is rated
out of
5 by
5.
¿Funcionará con mi televisor?
Enter the model number of your TV to find out.
Here are a few products that are compatible with your TV!
Videos para empezar
¿Qué es movilidad total?
Full-Motion Wall Mount for 26" – 42" flat-panel TVs — extends 9.5" / 24.13 cm

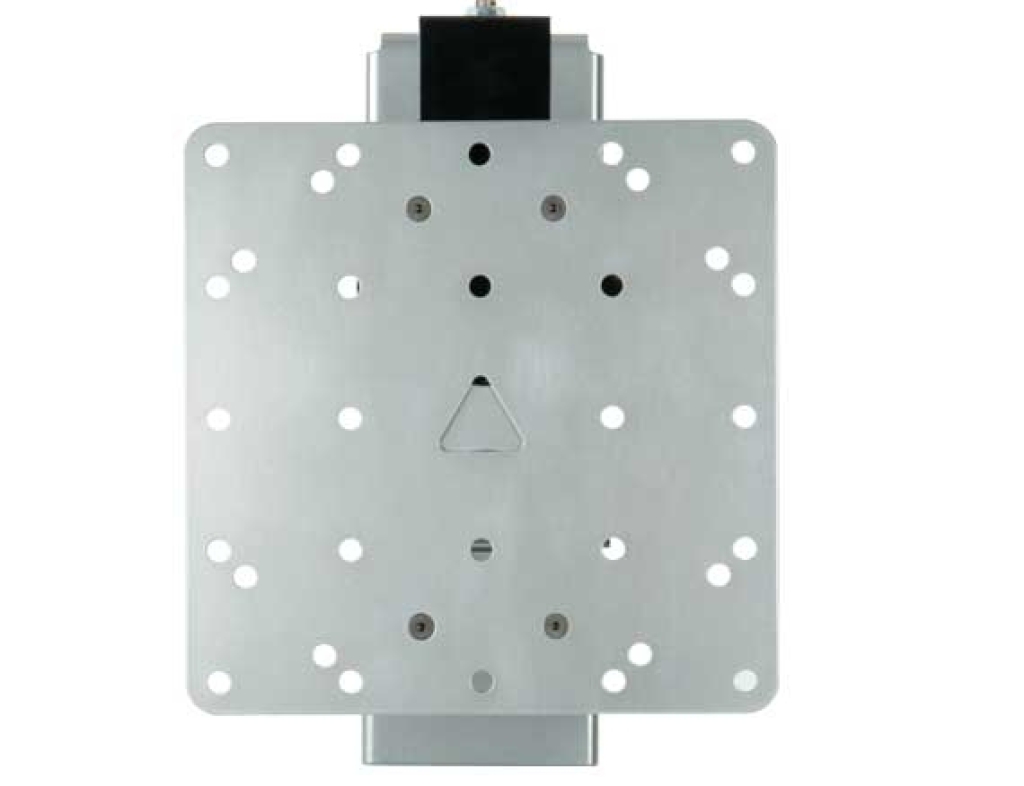

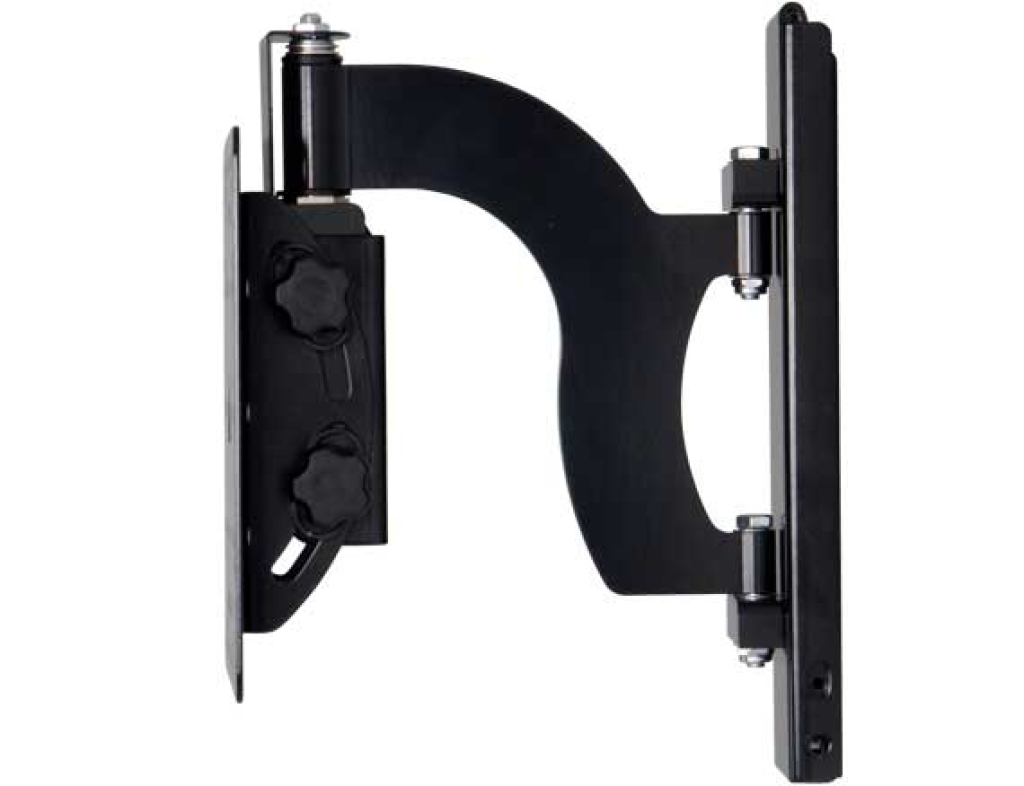

El VisionMount MF110 es un soporte de pared de movilidad total para televisores medios de LCD. La tecnología 3D Virtual Axis™ de SANUS permite realizar movimientos fluidos de inclinación, giro, paneo y extensión en cualquier dirección hasta una distancia de 9,5 pulgadas de la pared. La movilidad total permite obtener una fácil visión desde múltiples ángulos. Tras su montaje, el soporte puede girarse ±6º, para verificar el perfecto nivelado del televisor. Su sólida construcción de aluminio extruido y acero de calibre pesado ofrece una elegante apariencia de alta tecnología, proporcionando al mismo tiempo resistencia y durabilidad. Los patrones VESA 100 y 200 sirven prácticamente para todos los televisores y monitores de LCD de 15 a 40 pulgadas y hasta 100 libras de peso.Características del producto
Herramientas que necesitará para la instalación
-
3/16" Drill Bit
-
Taladro eléctrico
-
Destornillador Phillips
-
Detector de vigas
-
Wrench
The Details
| Marca del producto: | SANUS |
|---|---|
| Código de modelo: | MF110 |
| Código UPC: | 793795361806 - Negro - No se fabrica 793795361813 - Silver - No se fabrica |
| Anchura del producto: | 13.25" / 33.66cm |
| Altura del producto: | 12.30" / 31.24cm |
| Profundidad del producto: | 2.70" - 9.60" / 6.86cm - 24.38cm |
| Package Width: | 17.00" / 43.18cm |
| Package Height: | 4.13" / 10.49cm |
| Package Depth: | 14.00" / 35.56cm |
| Package Weight: | 16.00lbs / 7.26kg |
| Rango de tamaño de televisor: | 26" - 42" / 66.04cm - 106.68cm |
|---|---|
| Peso máximo de televisor: | 100lbs / 45.36kg |
| Patrones VESA compatibles |
|
| Pan: | 90° / -90° |
| Inclinación: | 5° / -15° |
| Enrollado: | 6° / -6° |
| Giro: | 30° / -30° |
Rated 5 out of
5
by
EERALEIGHGURU1 from
Great TV Mount System
I wanted a TV Mount for my daughter's room. I took her to Target yesterday and showed her the display of mounts. Target has a great display that allows you to see what you are getting and see how it moves, mounts, etc. They use clear lexan to represent the TV and you can see the mount behind it. She wanted the 110b since it had all the full-motion features. The price was good. The box was heavier than the Samsung LN32B360 TV we were to mount. The Instructions were precise and simple! The hardware was all there. The Mount was solid and well engineered. The adjustments were easy to make. I adjusted the TV dead level! I spent the majority of my time finding the exact center of the stud and mounting the bracket exactly were my Wife and Daughter wanted it! I am an engineer and in engineering you have to be exact! You are only doing it once! Once I mounted the Wall-Plate (I over-engineered, according to my wife, the exact location and placement over the stud), the rest was nothing. The box had all the proper hardware to mount to the TV including wrenches. No mods were needed. The TV is now on the wall and both my Wife and Daughter love it!
Date published: 2011-01-30
Rated 5 out of
5
by
Matt from
Awesome
I got this mount at Target for my 32" TV. To be honest, the mount is heavier than the TV. It is so well built it is amazing. It comes with a variety of bolts and hole patterns making it easy to mount whatever TV you get. The mount is also easy to install. You install a back plate to the wall and another piece to the TV. Then, all you have to do is slide the TV onto the wall plate and install one safety screw and you are good to go. I would highly recommend this mount!
Date published: 2010-12-08
Rated 5 out of
5
by
EKWMS from
Swing-out & Tilt Mount
Purchased this mount at Best Buy, but needed to order an adapter to fit our TV, which Sanus provided quickly. It is very sturdy, was easy to install & works beautifully. It's in a spare bedroom w/ limited space & with only one stud available to mount it on, having the swing-out & tilt features makes it easy to position the TV from different locations/ positions. I would definitely recommend this or any other Sanus products to anyone needing a TV wall-mount. They are a top-notch company.
Date published: 2010-12-08
Rated 5 out of
5
by
Bearfoot from
Best suited purchase
The MF11- full-motion wall mount offered all the features I needed, such as, tilt, side-to-side movement and close fit against the wall when needed. The installation was a snap using the downloadable instructions. I needed the mentioned brackets to fit my size tv, so I ordered them and all of the hardware was included. The design was well planned for setup with safety in mind. The quality of this product is excellent. I was a design engineer for many years and I recognize quality in a product.
Date published: 2009-06-02
Rated 4 out of
5
by
crissy from
works for me
I purchased this item just a few months ago and it is durable and holding the flat screen well, I do like that it has motion/flexibility to provide better screening angles based upon where you are sitting in the room. The caveat was that it was too small and extenders had to be purchased, they were only available on line at Sanus creating additional expenses.
Date published: 2009-06-01
