Elite Tilting TV Mount for 46"-95" TVs
BXT3
- Fits TVs 46" - 95"
- Depth 3.00"
- Tilting 7° / -12°
BXT3 is rated
out of
5 by
1.
Will this work with my TV?
Enter the model number of your TV to find out.
Here are a few products that are compatible with your TV!
Videos to Get You Started
What is Tilting?
Elite Tilting TV Mount for 46"-95" TVs

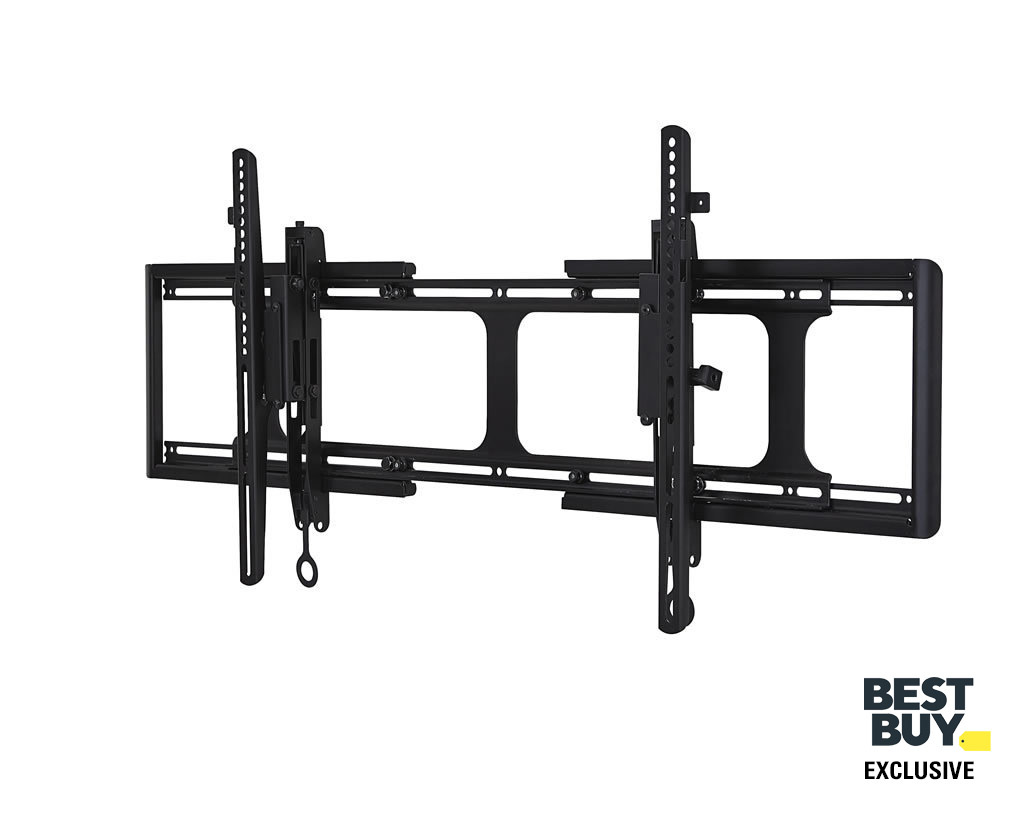

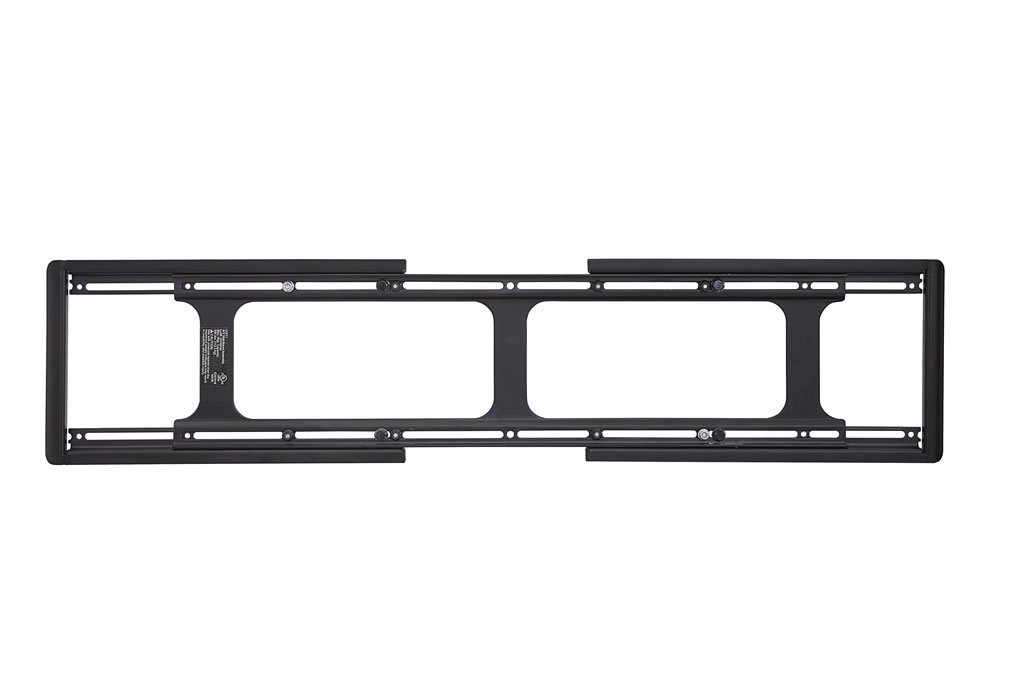

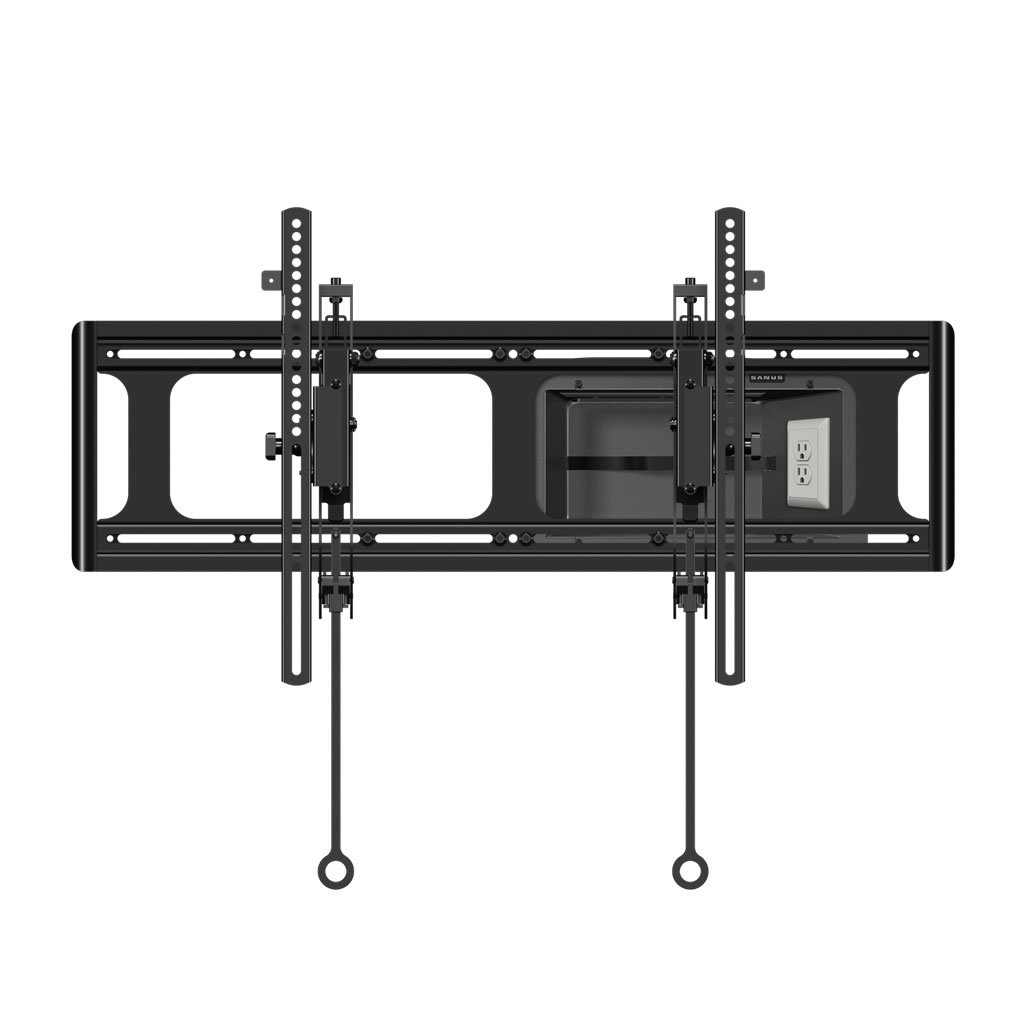

The SANUS BXT3 Elite Tilting Mount is one of the most revolutionary Tilt mounts available, ideal for larger TVs. Featuring 5.9” of extension from the wall, the BXT3 provides easy access to cables and allows maximum tilt for large TVs. The BXT3 also includes an expandable wall plate that allows the TV to be perfectly positioned on the wall. Open design allows mounting over wall boxes and electrical outlets for a professional finished look. Fits 46”-95” TVs up to 175 lbs and comes with a 10-year warranty.
Product Features
Tools You Will Need For Installation
-
Awl
-
Level
-
Phillips Head Screwdriver
-
Stud Finder
-
Tape Measure
-
Wrench
-
Drill (Only for wood stud, concrete and concrete block installations.)
The Details
| Product Brand: | SANUS |
|---|---|
| Model Code: | BXT3 |
| UPC Code: | 793795532749 - Black |
| Product Width: | 33.34" / 84.68cm |
| Product Height: | 18.13" / 46.05cm |
| Product Depth: | 3.00" - 5.99" / 7.62cm - 15.21cm |
| Product Weight: | 15.30lbs / 6.94kg |
| Package Width: | 36.54" / 92.81cm |
| Package Height: | 3.19" / 8.10cm |
| Package Depth: | 10.79" / 27.41cm |
| Package Weight: | 17.00lbs / 7.71kg |
| TV Size Range: | 46" - 95" / 116.84cm - 241.30cm |
|---|---|
| Maximum TV Weight: | 175lbs / 79.38kg |
| Universal Mounting: | Yes | 200 x 0 through 0 x 0 i |
| Supported VESA Patterns |
|
| Tilt: | 7° / -12° |
Recommended Products for You
Rated 4 out of
5
by
RunningOnEmpty from
Check the Extension Arms
This is the second Sanus wall mount I've purchased. I purchased this one because of the extendable wall plate. I had one stud right in the middle of where the TV was to go and 16" on center to the left and right of that stud. So unless I wanted to put a piece of wood on first and then bolt to it I needed to buy this unit. Look at the websites they have in the booklet that comes with mount. The one for helping you determine height of where to put your bottom lag holes is great. Another great feature on each arm is the leveling screw. I think I really needed this feature because of the reason I'm writing this long review. Now the problem with THIS unit. I would suggest checking, as soon as you purchase the mount, the parts that attach to your TV. They are the only moving parts in this product. Make sure they BOTH work correctly. One of tilting/extending arms was loose, had no tension, like the other arm and was not perpendicular to the bracket it's attached to. The components were put together loosely and had way too much play. You could twist the arm and it would go left or right for an inch or more. The other arm was tight and barely moved. I suggest you put the arms flat on the floor. Check that the arm is in line with the bracket. Wiggle the arm and check for excessive play. Pull the arm up and after you let go see if it stays there or does it fall back down which means it is too loose. All of these were a problem with one of the arms in my purchase. Now my whiny part. I had purchased but was not ready to install due to painting and this room wasn't the first room to be painted. After drilling the holes, test mounting the base plate, painting, again mounting the base plate, getting help to handling my 65" LG TV and removing its stand is when I found the problem with the one arm. By this time I found out by looking online that I was a couple days late of returning the mount. I should have tried to just exchange the arm by having Best Buy give me one from another box and have them return that box. But, we just wanted to put our living room back together. We keep the TV flat to the wall so for us the loose arm does not create a problem. It does, to some degree, when you extend as the loose one does not always want to stay right where you want. This is the same when rotating to the left or the right. This unit has a Ten Year warranty so if it stops working for our needs because of this or another reason I can return/exchange it. Sanus makes a good product, though not inexpensive, and except for this one part I would say you are getting your money’s worth.
Date published: 2019-05-19
